I. Common Color Defects and Causes of UV Ink on PE Film

Most color defects during UV ink printing on PE film are closely related to PE film properties and process control. Confirming relevant causes lays a solid foundation for subsequent optimization:

  • Color deviation: The printed color fails to match standard colors (Pantone color card). Main causes include insufficient surface energy of PE film, uneven ink layer thickness, improper pigment proportion and unreasonable curing parameters.
  • Uneven coloring: Uneven shade, color streaks and ink spots appear on ink layer surface. It is mainly caused by unclean PE film surface, poor ink wettability and unstable printing pressure, which occurs more frequently on insufficiently pre-treated PE film.
  • Poor hiding power: Base color of PE film shows through printed layer, especially obvious on dark PE film. Relevant reasons are insufficient pigment content, too thin ink layer, inadequate opacifier addition and insufficient surface roughness that prevent ink from forming dense ink film.
  • Low glossiness: Dull and matte ink surface. It results from incomplete curing, uneven PE film surface, low transparency of resin and ink surface fogging caused by excessive humidity in curing environment.

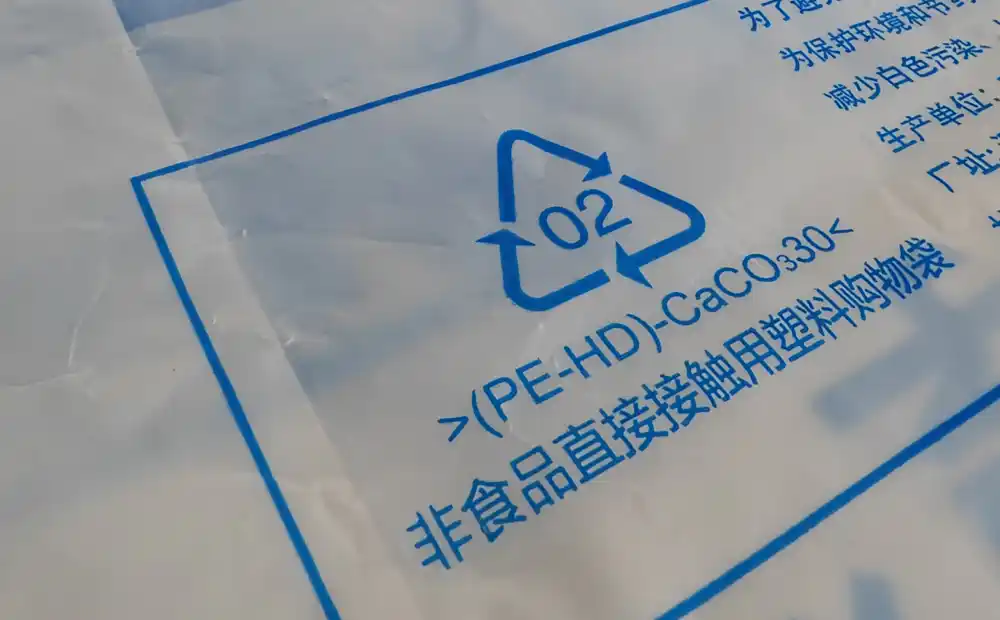

Color Performance and Optimization Methods of UV Ink on PE Film

II. PE Film Material Characteristics Affecting UV Ink Color Performance

The essential reason for various color defects lies in the inherent physical properties of PE film. Its non-polar feature and surface condition directly decide the wettability and adhesion of UV ink, thus affecting final color presentation:

  • Low surface energy and strong non-polarity: Untreated PE film only has surface energy around 32 dynes, making it hard for UV ink to wet and spread evenly. It easily leads to uneven ink adhesion and uneven coloring. Pre-treatment is required to raise surface energy above 40 dynes to meet printing requirements.
  • Unstable surface condition: Flatness, cleanliness and roughness of PE film greatly affect ink layer uniformity. Oil stains and dust cause partial pale color and missing print; uneven surface and scratches lead to inconsistent ink thickness and color difference; insufficient surface roughness reduces ink gloss and makes printed color dim.
  • Influence of color and transparency: Transparent and light-colored PE films require higher color accuracy and easily expose inherent color deviation of ink; dark PE films put forward strict demands on ink hiding power with higher risk of base color penetration, increasing difficulty in color control.

III. Optimization Methods for UV Ink Color Performance on PE Film

In view of PE film material features, practical and cost-effective optimization solutions are proposed from four aspects including PE film pre-treatment, ink formula, curing process and printing process to solve color-related problems effectively.

1. PE Film Pre-treatment Optimization

  • Select proper pre-treatment method: Adopt corona treatment to lift PE film surface energy over 40 dynes for full ink wetting and spreading, suitable for mass production. Use plasma treatment for high-precision and high-gloss printing to improve surface roughness, adhesion and color saturation.
  • Strictly control pre-treatment effect: Finish printing within 24 hours after pre-treatment to avoid surface energy attenuation. Remove oil, dust and scratches thoroughly before printing, and polish uneven film properly to ensure uniform ink laydown.

2. UV Ink Formula Optimization Adapted to Non-polar PE Film

  • Optimize pigment selection and proportion: Choose high-strength, well-dispersed and UV-resistant pigments and deploy proportion according to target color and PE film tone. Add proper opacifier for dark PE film, reduce diluent dosage for bright color printing and ensure full pigment dispersion.
  • Match suitable resin and additives: Use modified acrylate UV resin with excellent compatibility with PE film to enhance ink adhesion and transparency. Select photoinitiators matching light source wavelength to realize complete curing. Control diluent addition below 8% of total ink weight. Add wetting agent and levelling agent to improve wettability, and add anti-UV agent to enhance weather resistance.

3. Curing Process Optimization Suitable for PE Film Heat Resistance

  • Adjust light source parameters: Adopt low-heat LED-UV light source (365nm, 395nm) to prevent PE film thermal deformation. Increase power and irradiation time properly for dark ink, and reduce parameters for light-colored ink. Regularly inspect light intensity and replace aging lamps timely.
  • Stable curing environment: Keep ambient temperature at 20-28℃ and humidity at 40%-60%. Properly extend curing time or add moisture-proof additives in high temperature and high humidity areas. Adopt air cooling after curing to cool down PE film rapidly and maintain stable color effect.

4. Printing Process Optimization for Precise Quality Control

  • Control ink layer thickness: Keep standard ink thickness between 8-12μm, 12-15μm for dark ink and 8-10μm for light-colored ink. Adjust screen mesh count and printing pressure to control ink transfer volume and ensure uniform ink layer.
  • Optimize printing parameters: Set printing pressure to realize even ink transfer without PE film deformation, and control printing speed at 30-50m/min. Synchronously adjust curing parameters during high-speed printing. Calibrate printing equipment regularly, clean printing screens and check doctor blades and rubber rollers to avoid process-caused color difference.

5. Auxiliary Optimization Measures

  • Build professional color detection system: Use color difference meter and gloss meter for real-time inspection, keep color difference ΔE ≤ 2.0, establish production batch records and conduct trial printing before mass production.
  • Standardize storage management: Store UV ink in cool dark place and keep PE film dry and ventilated to avoid dampness, deformation and contamination.
  • Match different application scenarios: Enhance anti-UV performance for outdoor printed products, and adopt low-migration food-grade UV ink for food packaging to guarantee color stability and safety.

Conclusion

The color presentation effect of UV ink on PE film is mainly restricted by low surface energy and non-polar characteristics of PE film, which easily trigger various color defects. Effective optimization must start with material characteristics, take pre-treatment as foundation, formula adjustment as core and fine process control as guarantee, together with standardized testing and management, so as to achieve accurate, stable and long-lasting printing color. With continuous upgrading of PE film packaging industry, continuous technical improvement will further promote the matching performance between UV ink and PE film to meet diversified printing demands.

FAQ

1. What is the most common color defect of UV ink on PE film and its main cause?
Uneven coloring is the most frequent problem, mainly caused by low surface energy of PE film leading to poor ink wettability, as well as unclean film surface and unstable printing pressure, which happens easily on insufficiently pre-treated materials.

2. Why will unpretreated PE film cause mottled color and poor ink adhesion?
Untreated PE film is typical non-polar material with only 32 dynes surface energy. UV ink cannot wet and spread smoothly on the surface, resulting in uneven ink attachment, mottled printing, missing print and even ink peeling.

3. What simple methods can improve the hiding power of UV ink on PE film?
First, select high-concentration pigment and add appropriate titanium dioxide opacifier; second, properly increase ink layer thickness to 12-15μm for dark PE film; third, ensure moderate surface roughness of PE film.

4. How to avoid PE film deformation and keep stable ink color during curing?
Use low-heat LED-UV light source to prevent high-temperature deformation, control curing temperature within 20-28℃, and reasonably set light power and irradiation time according to ink thickness to avoid excessive curing.

5. How to ensure consistent ink color during mass PE film printing?
Complete printing within 24 hours after pre-treatment to stabilize surface energy; conduct real-time color testing with color difference meter and adjust ink formula and process parameters timely to keep ΔE ≤ 2.0.
