How to choose the right ethylene oxide sterilization ink?
Date: Jun 23 2025 From: Star Color Views:
In the production of aseptic packaging and medical products, Ethylene Oxide (EO) sterilization has become one of the most widely used sterilization technologies globally, thanks to its low-temperature efficiency and strong penetrability. This complex sterilization process involves multiple variables such as temperature, humidity, gas concentration, and time. Any deviation in parameters may lead to incomplete sterilization, posing significant medical safety risks.
Using EO sterilization indicator inks for visual monitoring of the sterilization process has become a necessary means to ensure the safety of medical products. This article explores the scientific selection strategy for EO sterilization indicator inks from five core dimensions, providing systematic technical guidance for the medical packaging industry.
International Standard Certification System: The Cornerstone of Quality Compliance

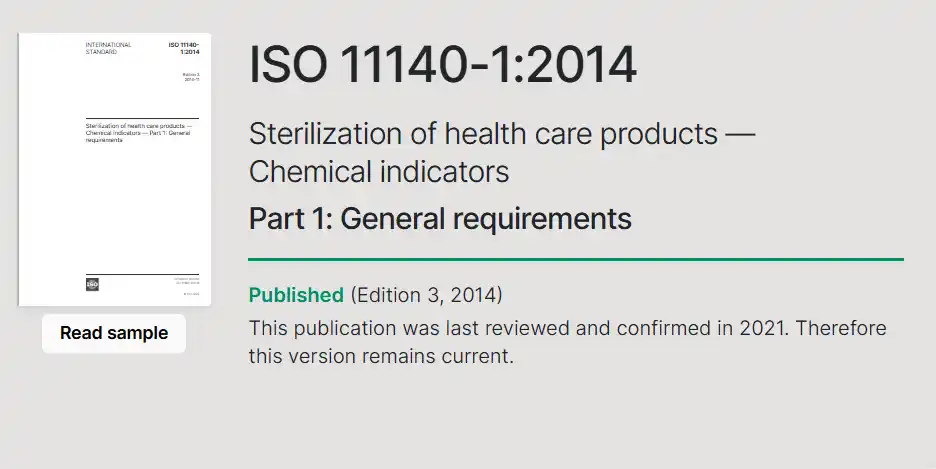

The ISO 11140-1 international standard, as an authoritative specification in the field of chemical indicators, establishes a rigorous performance evaluation framework. The standard classifies chemical indicators into six types, with Type 1 and Type 4 being most widely used in EO sterilization monitoring.
- Type 1 indicators only provide binary judgment (whether exposed to EO) based on color changes from chemical reactions between specific substances and EO. These indicators are low-cost and suitable for preliminary screening but cannot meet the sterilization verification requirements for high-risk medical devices.
- Type 4 multi-parameter indicators adopt composite chemical systems that respond to key parameters such as temperature, time, and EO concentration. For example, a Type 4 indicator from an international brand uses a three-layer structure design to generate color responses to different sterilization parameters, forming a unique color matrix change. This precise design allows any anomalies in the sterilization process to be intuitively presented through color combinations, with an error rate 83% lower than that of Type 1 (based on ISO 11140-1 laboratory test data).
Choosing indicators certified by international authorities not only ensures compliance with regulations such as the EU MDD Directive and US FDA 21 CFR 880 but also provides solid quality assurance for enterprises.

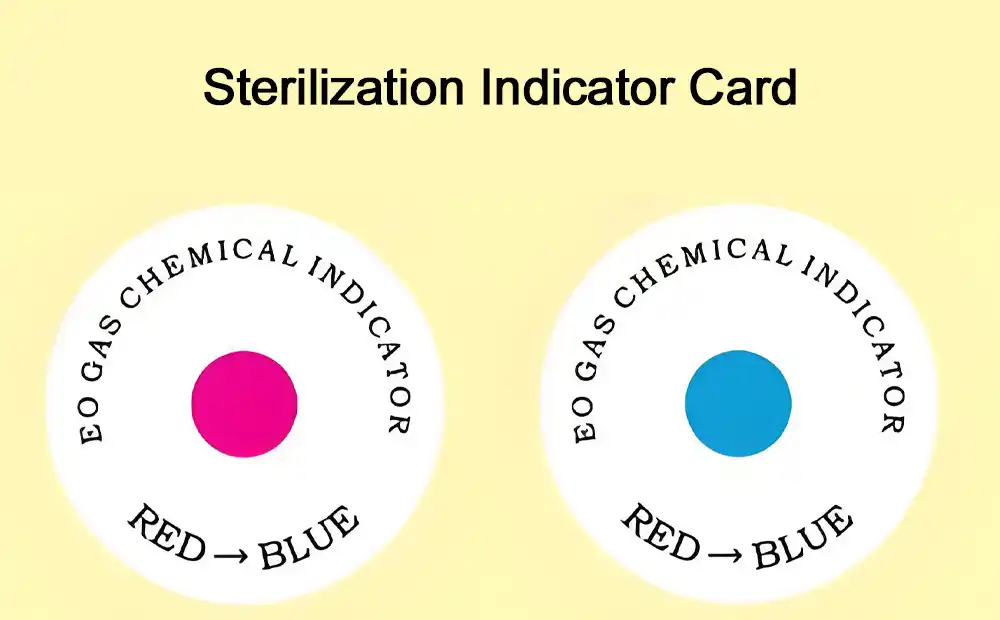

Engineering Design of Color Change Mechanism: The Core of Visual Monitoring
The color change performance of high-performance EO indicator inks is essentially a combination of precision chemical engineering and materials science, with core requirements in three aspects:
- Optical contrast design: Indicators should have a significant color difference of ΔE≥10 (CIE 1976 standard) to ensure clear identification under different lighting conditions.
- Chemical stability optimization: Adding hindered amine light stabilizers (HALS) and antioxidants can effectively inhibit color reversion during storage.
- Environmental tolerance enhancement: Nano-scale pigment dispersion technology significantly improves the indicator’s resistance to temperature and humidity fluctuations. Experiments show that surface-modified pigment particles reduce agglomeration by 70%, effectively avoiding false triggering during transportation.
Substrate and Printing Process Adaptation: The Key to Full-Scene Application
The diversity of medical packaging materials poses high adaptation requirements for indicator inks. Substrates differ in surface energy, porosity, and chemical properties—for example, the non-woven structure of non-woven fabrics and the smooth surface of PET films present completely different challenges to ink adhesion mechanisms. Ideal indicator inks should have the following characteristics:
- Printing adaptability: For flexographic printing’s anilox ink transfer characteristics, ink thixotropy and drying speed need optimization; screen printing requires good ink fluidity and instant drying performance. An ink supplier has achieved stable transfer across different printing processes by developing an ink system with temperature-sensitive rheological properties.
- Substrate compatibility: Adjusting the resin system and crosslinker formula enables effective adhesion to various substrates such as PE, PP, and aluminum foil.
- Migration safety: Ink migration must be strictly controlled during high-temperature sterilization. Microencapsulation technology fixes pigment particles within nanoscale polymer shells; simulated migration tests (ISO 14338 standard) show migration below the detection limit (<0.01mg/dm²).
Safety and Environmental Standards: The Baseline for Medical-Grade Applications
The safety assessment of indicator inks for medical packaging must comply with multiple international standard systems. In addition to meeting RoHS Directive restrictions on heavy metals and hazardous substances, they must also pass USP Class VI biocompatibility tests and ISO 10993 cytotoxicity tests.
In recent years, water-based ink technology has made significant breakthroughs. By introducing new materials such as waterborne polyurethane dispersions (PUD) and nanocellulose, it not only reduces VOCs emissions by over 90% but also maintains excellent printing performance and sterilization tolerance.
Development Trends of EO Sterilization Indicator Inks
The selection of EO sterilization indicator inks essentially involves optimizing the entire sterilization monitoring system—from molecular-level chemical formula design to engineered printing process adaptation and regulatory compliance. Each link requires systematic consideration.
As the medical industry’s quality control requirements continue to rise, future indicator inks will develop toward intelligence and multifunctionality, such as integrating temperature-humidity recording and time-stamping functions. Enterprises should establish a scientific evaluation matrix during selection, incorporating technical parameters, regulatory requirements, and service capabilities to build a safe, reliable, and efficient quality control system for medical packaging.
Enterprises seeking high-quality EO indicator ink solutions can consult professional technical advice and conduct sample testing, selecting the most suitable products based on their production process characteristics. Leading ink suppliers will continue to provide safer and smarter quality control solutions for the medical packaging industry through technological innovation.
If you are looking for high-performance EO indicator inks, StarColor offers certified solutions with wide adaptability. Contact us for samples and technical information.
